Electrocardiograms (ECGs or EKGs) are foundational tools in cardiovascular diagnostics. However, the reliability of an ECG reading depends significantly on correct ecg lead positions. Misplaced leads can result in misdiagnoses, inappropriate treatments, or overlooked abnormalities. For clinicians, nurses, and biomedical technicians, understanding and applying correct lead positioning is critical.
The Basics of ECG Leads
An ECG records the electrical activity of the heart via electrodes placed on the patient’s body. Depending on the clinical context, you may use:
- 3-lead ECG – Common for continuous monitoring (e.g., in ambulances)
- 5-lead ECG – Standard in telemetry
- 12-lead ECG – Used for diagnostic purposes in hospitals and clinics
Each system requires precise placement of leads to ensure accurate waveform readings.
Why Positioning Matters
Incorrect lead placement can mimic or hide serious conditions like:
- Myocardial infarction
- Bundle branch blocks
- Ventricular hypertrophy
In high-stakes environments like emergency rooms or operating rooms, precision can save lives.
Step-by-Step Guide: Proper ECG Lead Positions
➤ 3-Lead ECG:
- White (RA) – Right upper chest near shoulder
- Black (LA) – Left upper chest near shoulder
- Red (LL) – Lower left abdomen

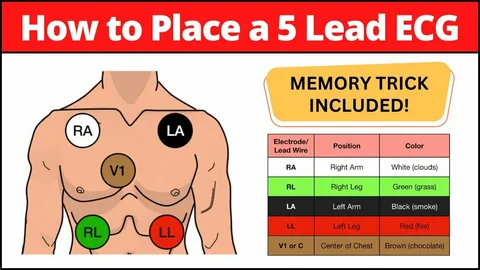

➤ 5-Lead ECG:
- RA (White) – Right chest, just below clavicle
- LA (Black) – Left chest, just below clavicle
- RL (Green) – Lower right abdomen
- LL (Red) – Lower left abdomen
- V (Brown) – Precordial lead placed depending on the monitoring goal
➤ 12-Lead ECG:
Includes the six limb leads (I, II, III, aVR, aVL, aVF) and six chest leads (V1–V6):
- V1 – 4th intercostal space, right sternal border
- V2 – 4th intercostal space, left sternal border
- V3 – Between V2 and V4
- V4 – 5th intercostal space, midclavicular line
- V5 – Horizontal to V4, anterior axillary line
- V6 – Horizontal to V5, midaxillary line
Tips to Avoid Common Errors
- Clean and dry the skin before placement
- Avoid bony landmarks or muscle mass
- Confirm lead color coding and orientation
- Recheck positions during long-term monitoring
Wrap-Up
Correct ECG lead positioning is fundamental to quality patient care. Misplaced leads lead to misreadings, which compromise patient outcomes. Always double-check placement to ensure accurate diagnostics. For reliable training resources and biomedical accessories, trust THE BIOMED GUYS.
